Description
The MT200-AC/DC is an innovative TIG welding machine from the TIG experts. This machine gives you the ability to quickly and efficiently adapt to dynamic welding situations. It is a portable and affordable option without compromising quality.
Create, Repair & Customize
- High-performance dual voltage inverter for 115V and 220V
- Two dynamic welding modes: GTAW (TIG) and SMAW (Stick)
- Easy-to-use interface allows quick setting adjustments
- Compact, portable design for use in multiple applications
- Features square wave technology
- 3 Year Warranty
Customer Review:
"As a welder of critical aircraft hardware, this machine is extremely easy to use and runs smooth as our more expensive machines at work"
- R. Harper, Aircraft Welder, 38 years experience
| Input Voltage: | 115VAC or 220VAC: +/- 15%, 50/60Hz |
| Input Current (15A/20A) | 115V: 21 Amps / 28.6 Amps, 220V: 34 Amps |
| Output Current Range GTAW | 115V: 5-140 Amps, 220V: 5-200 Amps |
| Output Current Range SWAW | 115V: 10-110 Amps, 220V: 10-160 Amps |
Rate Output GTAW | 115V: 15A @ 95A/13.8V, 60% Duty Cycle 20A @ 115A/14.6V, 50% Duty Cycle 220V: 160A @ 26.4V, 30% Duty Cycle |
Rated Output SMAW |
115V: 15A @ 60A/22.4V, 60% Duty Cycle 20A @ 115A/14.6V, 50% Duty Cycle 220V: 160A @ 26.4V, 30% Duty Cycle |
| Max. Open Circuit Volts | 61 Volts |
| Gas Pre-Flow | 0.5 seconds |
| Gas Post-Flow | 0.5 - 20 seconds |
| AC Frequency | 20 - 250 Hz |
| Pulse Frequency | 1 - 200 Hz |
| Pulse Width | 50% |
| Base Current | 10 - 100% |
| Arc Start | High Frequency |
| Dimensions | 15" x 8.5" x 20" |
| Weight | 32 pounds |
Included With Product
- MT200-AC/DC TIG Power Source

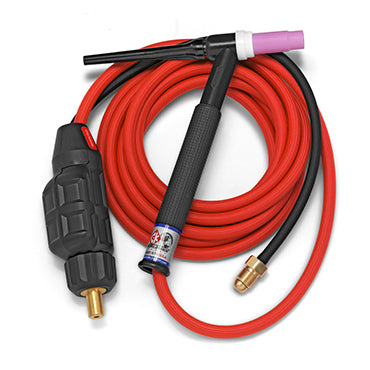

- CK17 Flex-Head Torch with 12.5' (3.8m) Super Flex Cable -
- Dinse Connector -
- Series 3 Accessories/Consumable Kit -
- Ground Clamp with 12.5' Cable
- Foot Pedal Amperage Control

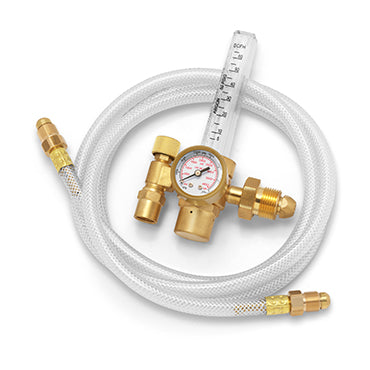

- Single-Flow Regulator
- 6' Gas Hose Hose -
- 220V to 115V Power Adapter
Specifications
Click to view full Spec Sheet
